Factory Electrical Metering Boundaries: An Energy Reporting Brief

A factory can cut its purchased electricity while using more electricity overall. Rooftop solar, a battery, a new production line or a change in tenant boundaries can all move the numbers without demonstrating an efficiency improvement. For an overseas facility team, the first useful deliverable is therefore not a dashboard: it is an agreed electrical metering boundary, a signed register of energy flows and a reproducible calculation.

This guide explains how to prepare that register for a Vietnam factory and turn it into a procurement and acceptance brief. It separates utility settlement, physical electricity consumption and management reporting. The worked example is entirely hypothetical; none of its readings, equipment or production results represents a QuangAnhcons project.

Prepared for QuangAnhcons · Editorial focus: factory energy reporting and electrical interfaces · Sources checked: 14 October 2026.

Start with three questions, not one meter specification

The utility or industrial-park billing meter answers a commercial question: which measured imports and exports are settled under the supply arrangement? Its location, ownership, approved configuration and contractual treatment must come from the actual supplier agreement. A plant monitoring meter does not acquire settlement authority merely because it is accurate or connected to a modern software platform.

The physical consumption boundary answers a different question: how much electrical energy entered and left the equipment or facility being assessed? A meter upstream of a transformer includes different losses from one downstream of it. A production-line meter may exclude common compressed air, cooling water and lighting even though the line depends on those services. The reporting team must decide whether those exclusions are appropriate before comparing sites.

The management indicator answers a third question: what result will the owner use to evaluate performance? Purchased kWh, electrical kWh per accepted product unit and a process-specific indicator are useful for different decisions. They must not share an ambiguous label such as “factory energy.” If thermal fuels or purchased steam are outside the calculation, call it an electrical indicator rather than total factory energy performance.

ISO 50006:2023, second edition, provides guidance on energy performance indicators and baselines. Its public overview supports this methodological context, not a claim that the example below satisfies every licensed provision. Selecting an indicator still requires the owner’s production, utility and reporting requirements.

Draw the boundary and assign every crossing a register

Use the current single-line diagram to mark the physical assessment boundary. Give each crossing a stable identifier and an arrow. The arrow defines the sign convention for the calculation; it does not replace the meter manufacturer’s register definitions. Import, export, delivered and received can be named from different reference directions. Confirm the mapping through the applicable manual and controlled commissioning records.

For an assessment downstream of the main transformers, an upstream billing meter is not directly interchangeable with a downstream main-switchboard meter. Resolve the difference by a documented measurement or engineering method, with its uncertainty and scope. Do not silently assume a catalogue transformer loss value is the actual monthly loss. Include auxiliary supplies and any alternate feeder that can cross the boundary during maintenance.

Flow ID Positive direction Required definition Responsible interface
G-IN / G-OUT Grid to plant / plant to grid Separate import and export energy, measurement location and settlement status Supply owner and electrical engineer
PV-AC PV inverter system to plant AC bus AC output at the declared point; distinguish inverter sum from a boundary meter Solar contractor and monitoring integrator
GEN-AC Generator to plant AC bus Output energy, test-operation periods and auxiliary consumption boundary Generator contractor and operations
B-CH / B-DIS Plant bus to battery / battery to plant bus Separate AC charging and discharging registers, auxiliary supply and storage-state records BESS supplier and reporting owner
L-A / L-B / U Bus to production A, production B and utilities Feeder identity, common-service inclusions and any downstream submeter hierarchy Production and facility teams

Add meter serial number, physical location, CT and voltage-transformer ratios where applicable, configuration revision, engineering unit, multiplier, timestamp convention, interval duration, communications address and data steward. Record whether the exported value is already scaled. Applying a CT multiplier twice can produce a plausible-looking trend with a completely wrong magnitude.

The register should also show its parent-child relationship. A line meter and its child machine meters cannot both be added to the facility total. A bus-tie feeder may change the measurement tree when the switching state changes; reporting logic must either know that state or use measurement points whose accounting remains valid in each approved mode.

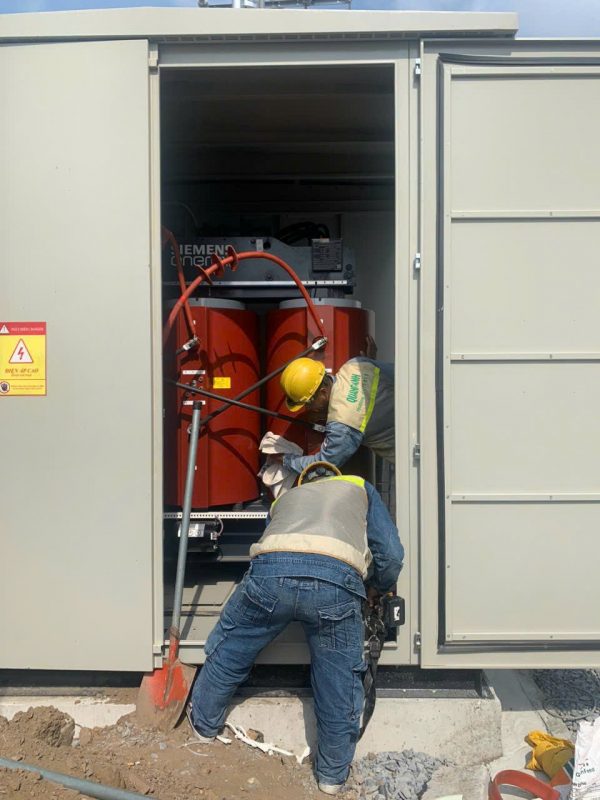

Vietnam-electrical-contractor-QuangAnhcons (400)
QuangAnhcons media-library archive: Vietnam-electrical-contractor-QuangAnhcons (400). Illustrative photograph; not the equipment or measured dataset of this hypothetical engineering example.

A worked AC balance with solar, a generator and battery storage

Consider an invented monthly assessment at one common AC bus. All values below are active electrical energy in kWh over exactly the same reporting period. The grid, PV and generator meters sit at crossings of that bus boundary. Battery charge and discharge are measured at its AC connection; dedicated battery auxiliaries are inside those measured flows. The non-battery load boundary includes production, common services and downstream distribution losses. The battery has the same recorded stored-energy state at the start and end. There are no unlisted feeders.

Hypothetical input, class E Energy (kWh) Direction for this balance
Grid import 180,000 Into AC bus
Grid export 12,000 Out of AC bus
PV AC production 60,000 Into AC bus
Generator AC output 2,000 Into AC bus
Battery AC charge 8,000 Out of AC bus
Battery AC discharge 7,200 Into AC bus

For this declared boundary, non-battery electrical consumption is Eloads = Egrid,in − Egrid,out + EPV + Egenerator + Ebattery,dis − Ebattery,ch. Substituting the hypothetical inputs gives 180,000 − 12,000 + 60,000 + 2,000 + 7,200 − 8,000 = 229,200 kWh. Every term is energy over the same period; adding a kW demand peak to this sum would be a unit error.

An independent closure check puts all inflows on one side: 180,000 + 60,000 + 2,000 + 7,200 = 249,200 kWh. Outflows are 12,000 + 8,000 + 229,200 = 249,200 kWh. The equality checks the arithmetic and declared accounting, not the accuracy or completeness of invented readings.

Net grid exchange is only 168,000 kWh. Reporting that number as plant consumption would omit other supplies and distort the result. For an alternative boundary that includes the battery system, external supply less export is 180,000 + 60,000 + 2,000 − 12,000 = 230,000 kWh. With the assumed unchanged stored-energy state, the 800 kWh difference from non-battery loads is the aggregate battery conversion/auxiliary loss within the stated measurement arrangement. Different auxiliary metering or a change in stored energy changes that interpretation.

Do not call all 7,200 kWh of battery discharge “solar electricity.” If the battery can charge from the grid, monthly registers alone do not identify the origin of each discharged unit. An allocation rule needs time-resolved data, operating modes and an agreed provenance method. Nor does a physical balance establish a carbon-accounting method, renewable certificate entitlement or permission to export electricity.

QuangAnhcons archive showing personnel handling a photovoltaic module on a roof
Historical QuangAnhcons solar-work archive. Illustrates a separate generation source requiring an agreed AC measurement boundary; not the PV system, energy yield, customer or safety method in the hypothetical example.

Investigate the residual instead of declaring it a loss result

Suppose the invented production feeders read 118,000 and 72,000 kWh, while a utilities feeder reads 33,300 kWh. Their sum is 223,300 kWh. The difference from the bus balance is 229,200 − 223,300 = 5,900 kWh, or 5,900 / 229,200 × 100 = 2.574%.

That residual might include unmetered lighting, real downstream losses, inconsistent timestamps, a missing alternate feed, scaling errors or meter uncertainty. It is not automatically theft, transformer loss or a failed meter. Set an investigation criterion using the measurement design and uncertainty of the whole chain; this article specifies no universal acceptable percentage. A small residual can also conceal offsetting errors, so arithmetic closure is necessary but insufficient evidence.

Choose production indicators that survive changes in operation

For an overseas management report, state both the numerator boundary and denominator definition next to each indicator. Accepted units, tonnes of saleable product, machine hours and operating hours are not interchangeable. Count rework, scrap and intermediate products consistently, and show how stock movements affect the period. Otherwise a production-record change can look like an energy improvement.

Using the same invented consumption of 229,200 kWh and 100,000 accepted units gives 2.292 kWh per accepted unit. A hypothetical comparison period with 210,000 kWh and 90,000 accepted units gives 2.333 kWh per unit. Total electrical consumption increased by 9.143%, while the simple ratio decreased by approximately 1.771%. Both statements can be correct; neither alone proves that an efficiency project caused an improvement.

Product mix, weather-dependent cooling, occupancy, shift patterns, idle operation and commissioning batches may explain the difference. Record the relevant variables and retain the baseline methodology before evaluating an intervention. A ratio can be a practical screen when the production relationship is stable. When it is not, use a justified model with documented scope and sufficient representative observations rather than manipulating the denominator to obtain a better result.

For a tenant or production department, separate measured energy from allocated common utilities. If compressed-air electricity is allocated by production output, label it an allocation, not a submeter reading. Do not compare a department’s measured-only ratio with another department’s measured-plus-allocated ratio. Keep the physical site balance separate from internal cost allocation so that the same shared energy is not charged or reported twice.

Make data quality visible to the reader

Each monthly result should carry coverage, quality flags and the calculation version. Align meter and production clocks using a documented timezone and interval boundary. Specify whether a timestamp marks the beginning or end of an interval. A vendor export using UTC and a local production report using Vietnam time can place the same shift in different days even when both systems are functioning.

Distinguish measured, reconstructed and missing intervals. A zero is a reading, not a convenient replacement for missing data. If a meter has no usable observation during an outage, mark the gap and explain any reconstruction method and its uncertainty. Do not silently interpolate a month and present it as fully measured evidence. Keep original exports unchanged alongside the cleaned dataset and transformation log.

For cumulative registers, calculate period energy from the end and start observations after checking rollovers, resets, meter replacement and changed scaling. For interval data, verify that intervals cover the period without overlaps or duplicate records. Compare the interval sum with cumulative change where both are available. Demand averaging windows belong in a separate definition; monthly kWh does not reproduce a maximum kW demand automatically.

Database access is also an owner interface. Agree who can read, correct, approve and export records; retain revisions and protect production information. Remote headquarters access does not justify unrestricted write access to electrical control equipment. Monitoring and operational control should have separately approved permissions and cybersecurity arrangements.

Put the accounting method into the RFQ and acceptance plan

Procure the measurement system around the decisions it must support, rather than a list of attractive dashboard features. The electrical contractor supplies a measurement-point schedule and safe installation design. The integrator maps actual registers, units and timestamps. Production supplies denominator data and change events. The owner approves the calculation and acceptance evidence. One named reporting owner should resolve conflicts between these packages.

Owner requirement Bidder return Acceptance evidence
Defined physical and reporting boundaries Annotated diagram, flow register and exclusions Approved measurement tree for each allowed switching mode
Traceable measurement chain Exact meter/CT/VT models, ratings, manual revisions and uncertainty basis Installation/configuration records and applicable calibration evidence
Reproducible calculations Register mapping, equations, scaling and sample export Independent replay of the agreed test dataset
Transparent incomplete data Gap, reset, rollover and replacement handling Tests showing flags and retained original records
Owner-controlled handover Accounts, permissions, backup and export arrangement Owner can reproduce the report without undocumented vendor edits

IEC 61557-12:2018+AMD1:2021, edition 2.1, concerns power metering and monitoring devices for electrical quantities in distribution systems, within its stated voltage scope. The catalogue lists the September 2022 corrigenda as incorporated. It is not a blanket substitute for settlement-meter requirements, power-quality instruments, functional safety or cybersecurity. Ask bidders to identify the standard and application relevant to each proposed device, rather than returning an unexplained “IEC compliant” statement.

Equipment-specific configuration must use the exact delivered manual. For example, Schneider Electric lists its PM8000 user manual, 7EN02-0336, version 12, released 20 March 2026. This is a documentation example, not an equipment recommendation or a claim that the model is installed at the hypothetical plant. Only public document metadata was verified for this article; no terminal arrangement, register address, accuracy value or CT setting is copied from an unread manual.

Use a controlled acceptance dataset that includes import, export, battery charging/discharging, a meter reset, a missing interval and a changed operating mode. The owner should independently obtain the same totals from the retained input files. A dashboard that displays the expected value after a vendor manually edits the source is not proof of reproducibility. Hardware commissioning and software-accounting acceptance are separate hold points.

Install and commission without turning reporting work into live electrical work

A new meter can require access to hazardous compartments and changes to CT circuits. Qualified personnel must prepare the actual isolation, lockout/tagout, verification of absence of voltage and restoration procedure under the approved site safety system and equipment documentation. Never open an energized CT secondary; potentially hazardous voltages can result. Use the engineered test/shorting arrangements and the applicable manufacturer’s procedures, not a generic internet wiring sequence.

Identify grid, generator, UPS, PV, battery and alternate-feeder backfeeds before authorizing work. Sealed utility or industrial-park metering requires the responsible asset owner’s involvement. A monitoring project is not permission to disturb settlement seals, change protective settings or bypass an interlock. This guide intentionally provides no live-work instructions, terminal diagrams or universal test values.

Plan outage access, production shutdown coordination and communications commissioning as different activities. Obtain the approved electrical records before validating polarity, phase mapping and flow direction through a controlled commissioning method. After restoration, check that configuration, alarms and the reporting boundary still match the signed register. Retain the original record when a correction is necessary; explain which reporting periods are affected.

Vietnam-electrical-contractor-QuangAnhcons (399)
QuangAnhcons media-library archive: Vietnam-electrical-contractor-QuangAnhcons (399). Illustrative photograph; not the equipment or measured dataset of this hypothetical engineering example.

What the owner should send for a scope review

Send a redacted current single-line diagram, supply and settlement boundaries, existing meter list, representative exports, production denominator definition, solar/battery/generator operating modes and the intended reporting audience. Add outage constraints and the team responsible for approving electrical changes. This is enough to start an interface review; it is not a request to send passwords, confidential prices or unrestricted access to control systems.

For related electrical context, read the electrical construction service scope when defining installation packages; the essential-load and generator sequence guide when alternate supplies change operating modes; and the net AC-deliverable BESS acceptance guide when storage performance needs a clearly measured boundary. Those articles answer different questions; none replaces this reporting register.

Source scope, method and limitations

ISO 50006:2023 and IEC 61557-12:2018+AMD1:2021 were checked against their official public catalogues on 14 October 2026. Public scope and edition information were read; licensed clauses were not accessed or reproduced. They are methodological and equipment-standard references, not an assertion of mandatory Vietnamese legal applicability. The applicable TCVN/QCVN, supply agreement, statutory reporting duties and authority requirements must be identified for the actual project; none is invented here.

All example inputs are class E hypothetical teaching values. The balance, residual and production ratios are original arithmetic checked independently. No tariff, savings guarantee, emission factor, customer result, certification, product availability or QuangAnhcons project claim is inferred. The deliverable is a defensible brief and calculation method; final measurement design and acceptance remain subject to approved engineering, actual manuals and stakeholder agreements.
