Electrical Operational Readiness for a New Vietnam Factory: Owner Checklist

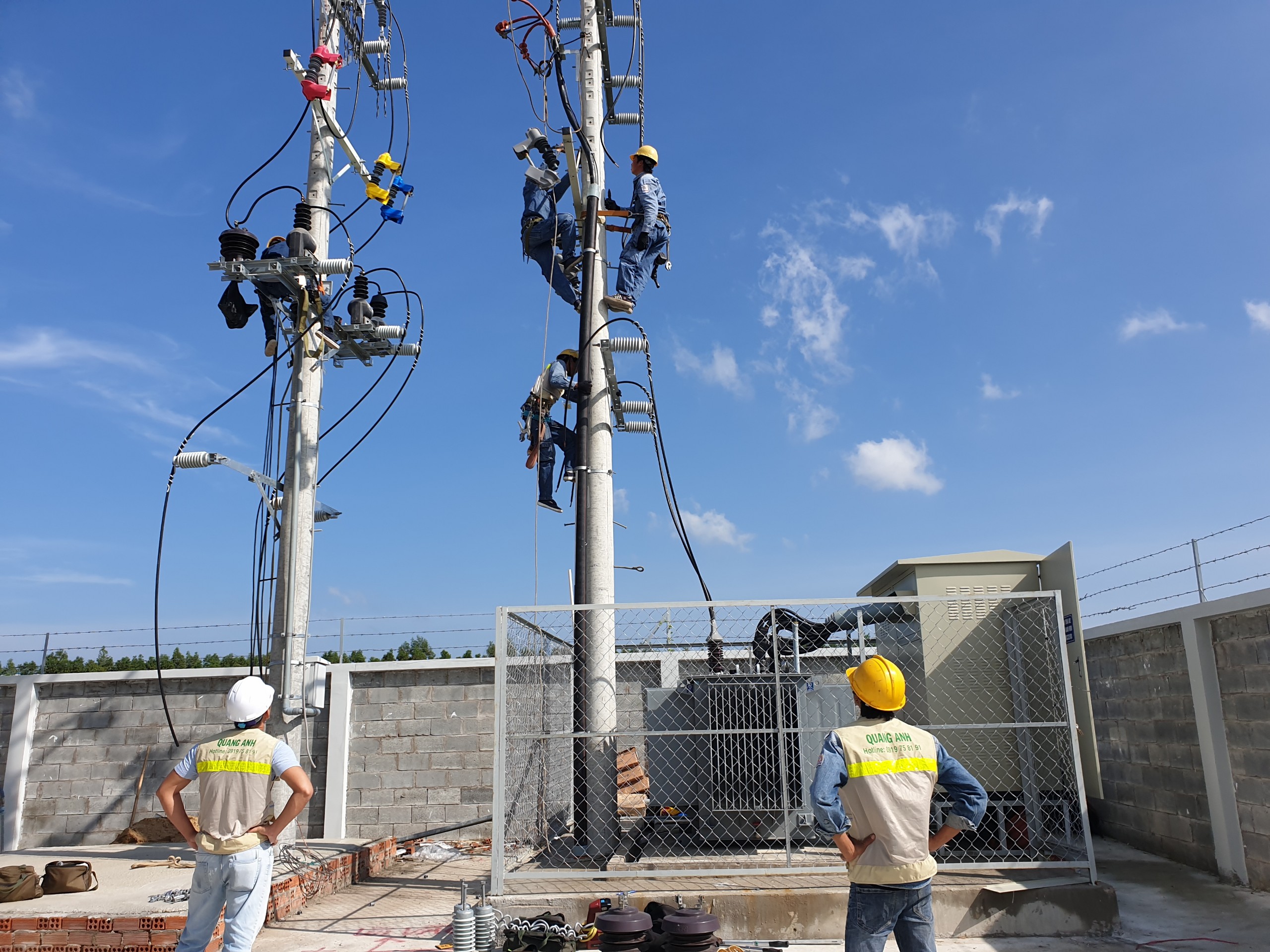

Electrical operational readiness is the owner’s evidence-based decision that a factory power system can be operated safely, repeatably and under controlled responsibility when production starts. It is not the same as equipment being energized, a contractor completing commissioning, or a utility meter becoming live. A new factory can pass individual tests and still be unready because the as-built baseline, protection files, operating authority, machine interfaces or emergency arrangements are incomplete.

This guide is written for international factory owners, project directors, facility managers and procurement teams preparing a new site in Vietnam. It converts a broad “ready for production” question into a controlled release process. The examples are hypothetical and do not select equipment, establish statutory compliance, or replace the approved design, applicable Vietnamese requirements, utility conditions and exact manufacturer instructions.

Prepared for QuangAnhcons · Editorial focus: owner-side M&E readiness for FDI factories · Sources checked: 11 October 2026.

1. Define the release decision before the final week

The owner should state exactly what is being released. “Power on” may mean only that one incoming feeder and transformer are energized. “Electrical completion” may mean that installation inspections are signed. “Operational readiness” should mean that the defined electrical systems, operating modes, people and records are ready to support an agreed production step.

Use three decision states:

• Not ready: a critical prerequisite is missing, a safety function is unproven, the configuration is uncertain, or the authorised decision-maker has not released the system.
• Conditionally ready: the defined operating step can proceed with documented restrictions, expiry dates, compensating controls and a named person authorised to accept the residual risk.
• Ready: all mandatory gates for the defined step have objective evidence, critical open items are closed, and operating ownership has transferred through the approved process.

Never calculate readiness as a simple average that allows a complete document pack to offset an untested protection trip. Some gates are binary. If the approved protection configuration is missing, the system is not made ready by a high percentage elsewhere.

Assign one release authority for each milestone: energization, auxiliary operation, unloaded machine rotation, process commissioning, controlled production trial and routine operation. The authorities may differ. Utility permission, contractor technical completion and owner commercial acceptance also remain separate decisions.

2. Build one owner-controlled readiness register

A single register should link every gate to the evidence, responsible party, due date, status, limitation and release authority. It is not a duplicate punch list. The punch list records defects and incomplete work; the readiness register explains which items block which operating state.

The register should inherit responsibilities from an approved design and construction matrix. The electrical design responsibility matrix for FDI factories explains how to separate producer, technical checker, interface coordinator and owner approver. Operational readiness adds the final release authority without transferring the designer’s or statutory party’s responsibility to the owner’s spreadsheet.

3. Freeze the as-built and configuration baseline

Operators cannot control a system whose configuration is uncertain. Before release, reconcile the installed assets to the approved single-line diagram, equipment schedules, cable and protection schedules, interlocking logic, earthing design, metering architecture and interface drawings. Record authorised deviations and ensure that field changes appear in controlled redlines or as-built documents.

Check physical labels against both the drawings and operating language. The same feeder should not have three different names in the switchboard label, SCADA screen and switching procedure. Where bilingual labels are required, confirm the approved terminology and ensure that emergency instructions remain unambiguous.

For every configurable device, retain the exact model, firmware where relevant, setting/configuration revision, checksum or controlled file identity where supported, date, responsible person and recovery method. Examples include protection relays, power-quality meters, automatic transfer controllers, capacitor-bank controllers, PLCs, gateways and energy-management devices. A screenshot without a device tag and revision is weak evidence.

Configuration freeze does not mean that settings can never change. It means changes enter a controlled route: technical review, approval, implementation, functional confirmation, updated records and rollback information. Avoid undocumented adjustments during production ramp-up.

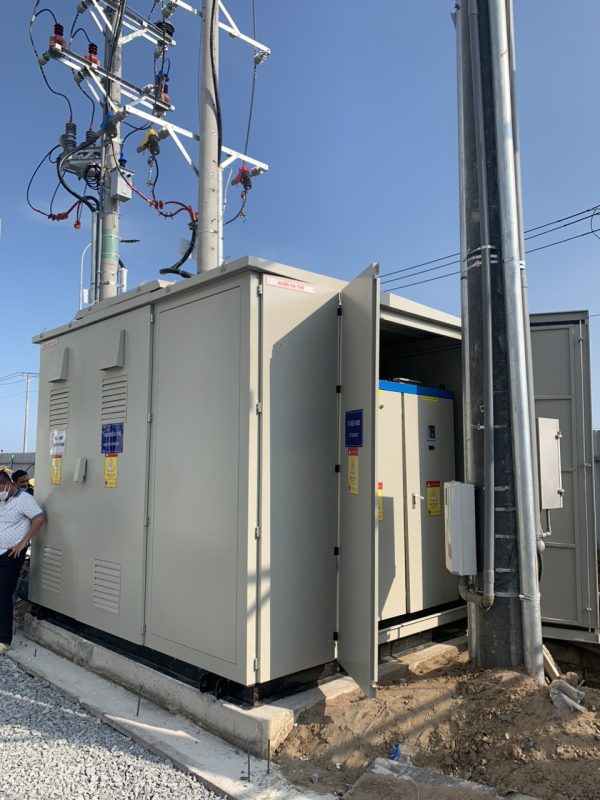

4. Prove the complete power path in normal and abnormal modes

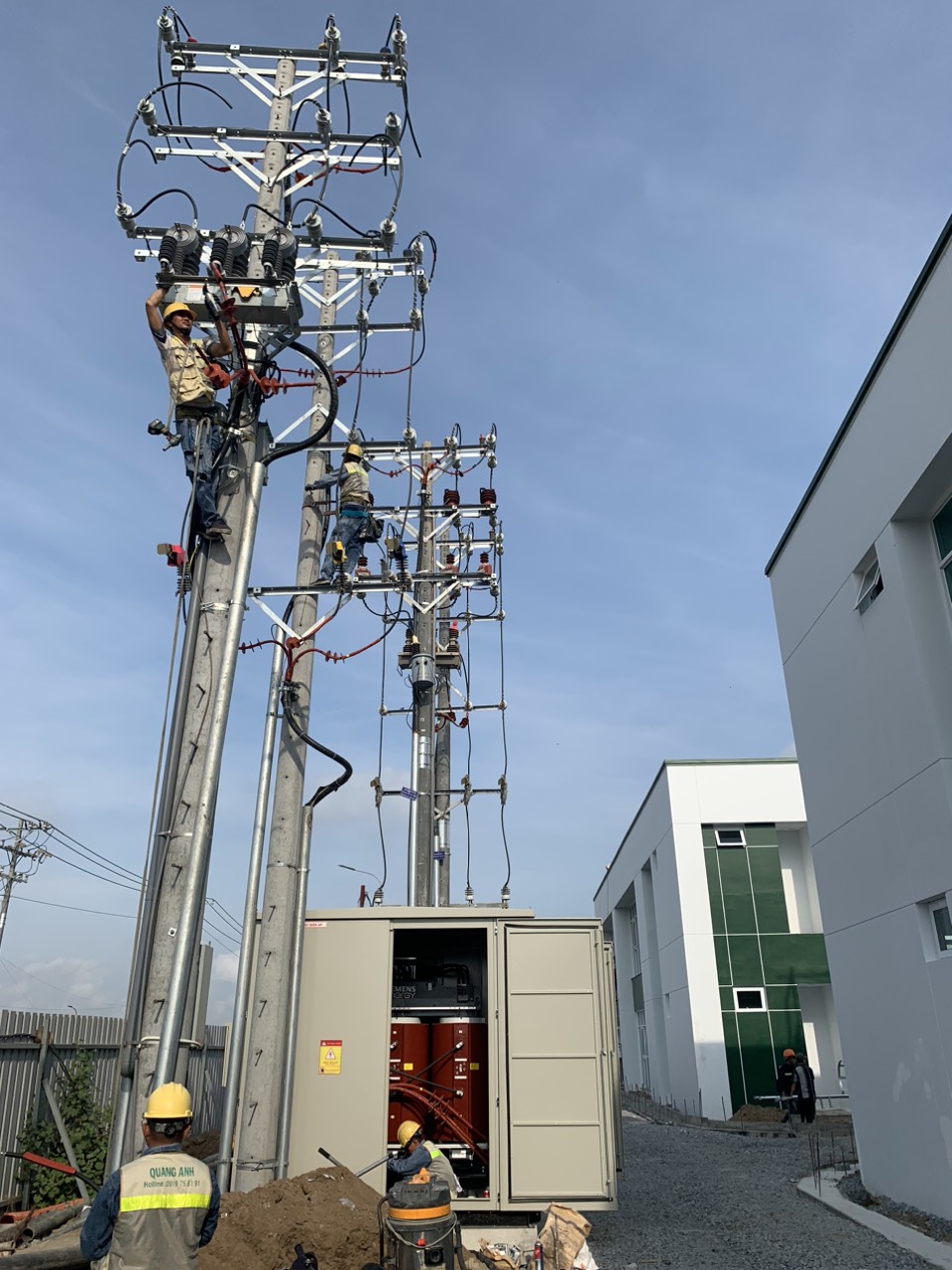

Start from each source and trace energy to the defined production loads. The functional single-line view should identify utility or industrial-park supply, generators or other alternate sources if present, medium-voltage switchgear, transformers, main low-voltage assemblies, distribution boards, final feeders and critical auxiliaries. Do not infer system readiness from isolated factory acceptance tests.

Demonstrate defined modes, not every imaginable failure. The approved cause-and-effect or functional test plan should cover normal source, loss and restoration of supply, permitted transfer modes, emergency stop or trip interfaces, alarm paths and restart philosophy. Testing must be planned and conducted by competent, authorised parties using the actual design and safe work controls.

The factory substation isolation, tie-in and commissioning plan is useful where a new system connects to an existing energized facility. A greenfield readiness plan still needs the same disciplined treatment of boundaries, rollback and release, even if there is no brownfield shutdown.

5. Close protection, earthing and power-quality risks

Protection readiness requires more than a relay test sheet. Reconcile the approved fault study and coordination basis to the installed transformer impedance, cable data, breaker and fuse models, CT/VT ratios, relay logic, settings and operating modes. Confirm that the uploaded file is the approved revision and that the trip path has been proven through the installed chain where the commissioning plan requires it.

For each protective function, preserve four layers of evidence: the approved design basis, device configuration, injection or functional test result, and installed trip/alarm path. A component certificate or successful secondary injection does not on its own demonstrate the complete breaker trip circuit, interlock, SCADA indication or mechanical operation.

Earthing readiness should reconcile the approved design, concealed-work evidence, installed bonding, accessible connections, test records and special interfaces such as lightning protection, machine skids, structural metalwork, cable screens and electronic systems. Acceptance values and methods must come from the approved design and applicable project documents; this article does not prescribe a universal resistance value.

Establish a pre-production power-quality baseline where sensitive drives, welders, furnaces, large motors, UPS systems, capacitor banks or rooftop PV may interact. Record voltage, frequency, current balance, power factor and harmonics using an agreed method and time window. A baseline is not proof that every future production state will remain acceptable; it provides a traceable reference for staged startup and later diagnosis.

For fault-level governance, see the factory short-circuit case register and breaker kA guide. Operational readiness should confirm that the approved fault cases and installed device capabilities refer to the same network configuration.

6. Verify production, MEP and vendor interfaces

Many startup failures occur between packages rather than inside one item of equipment. The electrical contractor may terminate a feeder correctly while the machine vendor assumes a different voltage, fault level, earthing arrangement, neutral, power-quality environment or control interface. Freeze an interface schedule for every production line and major utility.

Use the imported production line P/Q load schedule guide to obtain comparable machine inputs. “500 kW connected load” is not enough to model transformer demand, starting, power factor, harmonics or operating sequence.

Also close interfaces with HVAC, compressed air, process cooling, fire alarm and suppression, building management, security, ICT/OT and civil works. For example, a transformer-room ventilation alarm may be available locally but absent from the location where operators make a loading decision. Readiness requires the complete decision path, not just a sensor.

7. Prepare authorised people, procedures and emergency response

A technically complete system is not operationally ready if nobody owns it. Name the asset owner, operating authority, switching authority, maintenance coordinator, emergency contacts and escalation route. Define the boundary between owner staff, EPC contractor, OEM service personnel, utility or industrial-park personnel and production-machine vendors.

Operators should receive site-specific training on the approved single-line diagram, normal operating modes, alarms, switching and isolation boundaries, lockout/tagout procedure, emergency actions, incident reporting and restrictions during ramp-up. Attendance alone is not competence. The project should define how understanding and authority are demonstrated and recorded.

Switching schedules, permits, LOTO documents and emergency procedures must be approved for the actual system. They should identify tagged devices and safe boundaries, not rely on generic instructions. This article does not provide switching steps, live-work methods or arc-flash PPE categories; those require project-specific engineering, risk assessment and competent authority.

Confirm physical readiness: controlled access, escape routes, lighting, ventilation, fire protection interfaces, rescue arrangements where required, warning labels, keys and interlocks, housekeeping, water ingress control, temporary supplies and removal or formal control of construction jumpers. Temporary conditions must be visible in the readiness register.

8. Transfer usable settings, software, spares and records

Handover should allow the facility team to operate, diagnose and recover the system—not simply store PDFs. Provide a controlled index linking each asset to as-built drawings, manuals, test reports, certificates within their valid scope, settings/configuration files, software or licences where contractually included, backup and restore instructions, alarm lists, maintenance tasks, warranty contacts and spare parts.

Test at least one backup-and-restore workflow in a safe, approved manner where configurable systems depend on it. A backup that cannot be identified, decrypted, imported or matched to the installed firmware is not useful recovery evidence. Keep credentials out of general commissioning reports and use the owner’s approved secrets-management route.

Validate time synchronization across relays, meters, PLCs, SCADA, BMS and event recorders. Without a reliable common time basis, post-event analysis can confuse cause and effect. Record timezone, synchronization source, expected accuracy for the application and the behavior when that source is unavailable.

Place critical spares and special tools at the point of use or in a controlled store, with exact equipment compatibility confirmed. Do not accept a generic “recommended spares” list that lacks model, rating, firmware/configuration relevance, preservation conditions, lead time and ownership.

9. Independently check a hypothetical staged-startup load

Consider a hypothetical 1,600 kVA, 400 V transformer supplying four aggregated operating groups. These are editorial inputs only: essential auxiliaries 180 kW at power factor 0.90; HVAC and process utilities 250 kW at 0.92; production line A 420 kW at 0.88; and line B 360 kW at 0.90. No diversity, harmonic derating, motor-starting voltage dip, ambient correction or future growth is included.

Reactive power is calculated separately for each group using Q = P × tan(cos⁻¹(pf)). For a stage, active and reactive powers are summed, then S = √(P² + Q²). This avoids the common mistake of simply adding kVA values with unlike power factors. Three-phase current at 400 V is I = S × 1,000 /(√3 × 400).

The arithmetic indicates that the defined steady-state groups total about 1,348 kVA, or 84.3% of the hypothetical transformer nameplate. It does not prove that the transformer, cables, switchgear or utility connection are adequately sized. The final decision still needs load profile, transformer duty and temperature limits, harmonics, starting/inrush, voltage drop, fault level, protective coordination, approved demand assumptions, redundancy philosophy and manufacturer data.

The readiness value of this calculation is the sequence. Stage 1 can prove auxiliary stability before a production line is introduced. Stage 2 can be held long enough to observe voltage, current, temperature, alarms and power quality. Stage 3 is released only after Stage 2 evidence and open items are reviewed. The stage limits and observation periods must be designed for the real plant.

10. Run a controlled 72-hour startup window

The following mini-WBS separates 72 hours of preparation before T0 from the first 72 hours of startup after T0: its complete T−72 to T+72 span is 144 hours. It is an illustrative planning structure, not a promise that any factory can become ready in 72 hours. Prerequisites should already be substantially complete. The owner may extend, stop or reverse a stage when evidence is unsatisfactory.

Define rollback before startup. Identify the safe response to protection operation, abnormal temperature, repeated undervoltage, unacceptable power quality, loss of ventilation, control-system instability, water ingress, fire alarm or machine-vendor abort. The decision tree must identify who can stop the process and who authorises restart.

11. Separate legal, TCVN, IEC, utility and vendor requirements

The project team should maintain an applicability register instead of claiming generic “IEC compliance.” A standard can define technical requirements without being Vietnamese law. A TCVN catalogue entry does not by itself establish mandatory project applicability. Utility/industrial-park conditions apply to the connection boundary, while OEM instructions apply to the exact supplied equipment.

Edition control matters. Record the edition adopted in the signed contract and approved design. A later publication should trigger a documented review, not an automatic mid-project change. Likewise, a product certificate supports only the product/configuration and conformity route stated on that certificate; it does not certify the entire factory electrical system.

12. Put operational readiness deliverables in the RFQ and contract

If readiness evidence is requested only before startup, important records may be unavailable or commercially disputed. Issue a return schedule with the RFQ and require bidders to identify inclusions, exclusions, responsible parties, review periods and priced support.

Compare offers on evidence and boundary clarity, not only equipment price. A low offer may exclude machine-vendor interfaces, relay-setting studies, functional trip-path tests, OT configuration backups, utility attendance or ramp-up support. Those differences can become startup risk later.

For procurement timing, the long-lead electrical equipment schedule guide distinguishes manufacture, FAT, dispatch, site receipt, installation and energization. Add operational readiness as its own milestone after the relevant installed-system evidence is available.

Owner checklist before releasing first production

• The operating step, boundary and release authority are explicit.
• Installed asset identity and the current SLD/configuration baseline agree.
• Critical protection, interlock, trip, alarm and transfer functions have approved evidence.
• Earthing and LV installation verification records cover the circuits entering service.
• Machine, HVAC, fire, BMS, utility and OT interfaces have named owners and tested records.
• Operators are authorised, procedures are system-specific, and emergency/rollback routes are usable.
• Settings, backups, as-builts, manuals, spares and warranties are indexed by asset.
• Open items state their effect on each operating stage; critical blockers cannot be averaged away.
• Startup loads are sequenced and monitored against approved design limits.
• The final decision is recorded as not ready, conditionally ready or ready with evidence.
