Addressing the critical need for dependable and efficient energy distribution, the project to introduce a 22KV transmission line and a 180kVA 22/0.4KV substation is pivotal. This endeavor is marked by a strategic procurement of high-grade materials and the acquisition of specialized labor, aimed at reinforcing the electrical distribution network’s integrity and efficiency. The project is designed to align with state-of-the-art engineering standards and seeks to cultivate productive interactions with regulatory bodies overseeing energy. An extensive examination of this project will delve into the specifics of component selection, execution strategy, financial planning, customer engagement practices, and regulatory compliance, to provide a thorough portrayal of the project.

CONSTRUCTION OF 180KVA – 22/0.4kV SUBSTATION

How much does it cost to build a 180kVA transformer station in Vietnam?

Constructing a transformer station is an intricate endeavor that requires precision and specialized technical know-how. The 180KVA – 22/0.4kV transformer station is integral to delivering stable electrical power to residential zones and businesses, greatly influencing the socio-economic advancement of the locale. We provide an exhaustive overview of the construction process, covering documentation, material and equipment preparation, and construction to warranty services, offering our clients a detailed comprehension of the entire operation.

I. Material and Equipment Estimation

1. 22kV Transmission Line:

– Spun concrete pole, iron braces, bracing bars, insulators, cables for phase and neutral conduct14m centrifugally spun concrete Pole
• Iron brace L2400x75x75x8mm/Zn
• Bracing bar 60x6x920/Zn
• 24Kv Standing Insulator + Ty
• 24Kv Polymer Suspension Insulator
• AXV 50mm2 insulated cable: phase conductor
• Bare AC 50mm2 cable: neutral conductor
• CXV 25mm2 insulated cable: Phase conductor
• FCO 200A-24kV polymer + bass
• Lead wire 20K
• Top and bottom FCO cap
• 2.4m composite brace + bracing bar
• 3P 4 wire 120/60V – 5A electronic meter
• Cu/XLPE/PVC 4Cx25mm2 cable – 0.6/1kV
• Electric meter composite cabinet size H500 x W300 x D200
• Earth connection for transmission line
• Pole foundation
• Transmission line testing
• Transmission line accessories
• Full package laborors, polymer bases, and other necessary accessories.

2. 180KVA Substation Setup:

a. Conduction Materials:

– Concrete poles, iron braces for various mounts, insulators, and foundational accessories.
– High-voltage insulated cables and low-voltage cables for transformer outputs.
• 14m centrifugally spun concrete Pole
• Iron brace V75x75x8x2.6m, hole center 2.4m(3 covers, 80 cover, insulator + FCO mount)
• Iron brace V75x75x8x2.6m, hole center 2.4m(no cover, MSB + compensation box mount)
• U-brace 100×0.5m
• U-brace 100×1.1m
• U-brace 200×2.8m(hole center 2,4m)
• 24kV Polymer Standing Insulator DR600 + rod
• Transformer station accessories
• Pole foundation
22KV ELECTRICAL CONDUCTION
• 24KV insulated C/XLPE/PVC 25mm2 cable
LOW VOLTAGE CONDUCTION
• CV/600V-150mm2 cable output Transformer
• CV/600V-95mm2 cable output Transformer

b. Substation Equipment:

– Oil transformer, polymer bases, lead wires, LA caps, compartment cabinets, PVC pipes and connectors, and full package labor.
• Oil Transformer 3 Phase 180KVA- 22/0.4KV
• FCO 200A-24kV polymer + bass
• Lead wire 20K
• Top and bottom FCO cap
• LA 18KV 10KA
• Top and bottom LA cap
• 2 compartment MSB cabinet (MCCB + CSPK compensation)
• MCCB 3P 300A
• 90Kvar compensation panel
• PVC Pipe D114
• PVC Pipe bend D114
• PVC Pipe connector D114
• PVC Pipe collier clip D114
• Nameplate for FCO, pole, station, no climbing warning
• Transformer station earth connection
• Equipment testing
• Full package labor

3. Additional Costs:

– Design, supervision, cut-off connections, testing, and transportation.
• Design, estimation, appraisal costs
• Supervision cost
• Cost of electrical connection cut-off
• Testing and commissioning cost

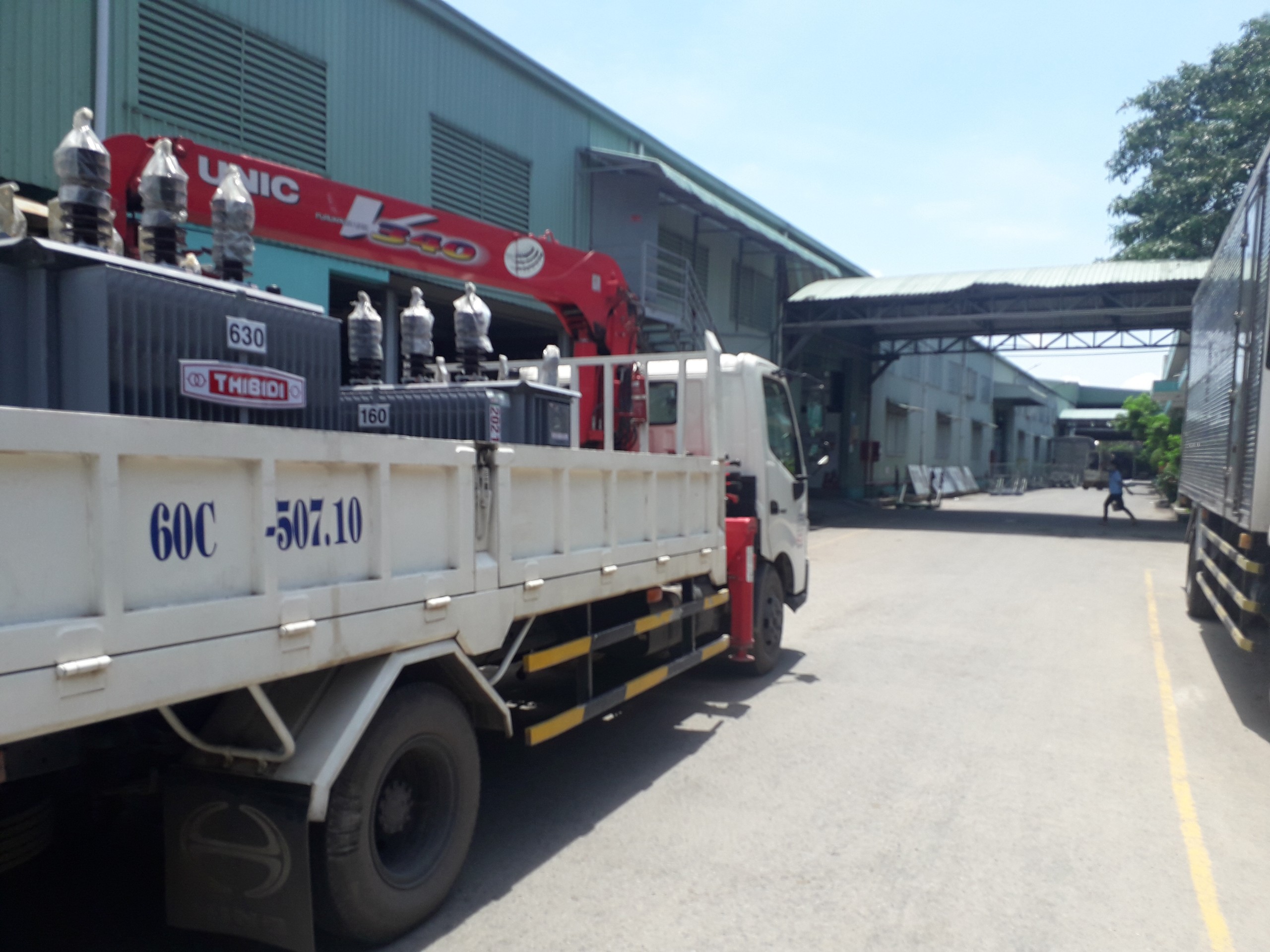

• Construction equipment & transportation of materials and equipment

II. Total Costs

In total costs, you can find all of the items mentioned above in our video.

III. Construction Workflow

– From preparing and approving the substation documentation to the complete construction of the 180KVA transformer station, we ensure compliance with all current electrical equipment standards and coordination with relevant electrical units. The construction period totals 45 days, with a detailed breakdown of tasks and timelines.

IV. Payment Schedule

The timeline for project completion is 45 days, with payments divided into three installments:
• Installment 1: 50% prepayment post-contract signing.
• Installment 2: An additional 40% after installation of the transformer.
• Installment 3: The remaining 10% upon energization and testing.

V. Warranty and After-sales Service

– We pledge a 12-month warranty and responsive after-sales service to ensure seamless electrical system operation.

VI. Documentation and Legal Procedures

– A comprehensive list of documents and steps required for construction in Vietnam, including application processes, technical drawings approval, and connection agreements.
When it comes to establishing a 180kVA transformer station in Vietnam, adhering to a specific set of governmental regulations and protocols is mandatory. Below, we delve into an organized guide outlining the essential phases and documentation involved in this process:

Initial Legal Document Preparation:

Commencing the project necessitates the gathering of vital legal documentation. This includes acquiring notarized copies (four of each) of the land use rights certificate or a land lease agreement, the business registration, the legal representative’s ID or passport, and any environmental commitments. These documents should not exceed three months in age.

Submission of Electricity Purchase Application:

The journey begins with your application to purchase electricity, submitted to either the local Electricity Company or the Business Division of the Vietnam Electricity Group. This crucial step initiates the installation of your transformer station.

Clarification of Electricity Purchase Location & Purpose:

Essential documentation clarifying the intended location for electricity usage and its purpose is required. This encompasses residency or property ownership proof, identification of the business’s legal representative, and the business’s operational scope, detailed through registration certificates or investment permits.

Connection Application As Per Industry Standards:

This step involves submitting a detailed connection application complemented by schematic layouts of primary equipment post-connection and related technical specifications, adhering strictly to the Ministry of Industry and Trade’s guidelines.

Site Survey and Connection Negotiation:

Upon application receipt, a thorough site survey is conducted by the Power Company, followed by discussions to finalize the connection point’s location and the specific technical prerequisites.

Investment Contract Finalization & Legal Formalities:

This phase includes aligning with the National Electric Power Development Plan, securing the necessary construction permits, and orchestrating environmental safeguard measures.

Station Construction & Development:

The actual construction phase encompasses site preparation, possibly obtaining excavation permissions, sourcing the required materials and equipment, and managing the construction activities efficiently.

Final Acceptance & Power Activation:

To culminate the project, a commissioning panel is formed to oversee the final acceptance tests, leading to the official power activation conducted alongside the Power Company’s representatives.

Navigating through these structured steps ensures a compliant and smooth journey towards the successful construction of a 180kVA transformer station, laying a solid foundation for future energy distribution and usage in Vietnam.

VII. Customer Engagement and Service Excellence

– We provide quality assurance, transparent pricing, and extensive experience in constructing transformer stations, backed by around-the-clock customer support.

For bespoke advice and a detailed quote tailored to your specific requirements for a turnkey 180kVA 22/0.4kV transformer station, reach out through the provided contact information. Our adept team will guide you through planning, pricing, and legalities, ensuring a smooth construction process.
