What is the total construction price for a 1500kVA substation in Vietnam?

Ensuring Quality and Compliance in Substation Construction

Quality assurance and regulatory compliance are pillars of successful substation construction. This guide by QuangAnhcons offers an in-depth look into the standards and practices that govern the construction of a 1500kVA – 22/0.4KV substation. By focusing on the key areas of material quality, workmanship, and adherence to electrical standards, we provide a comprehensive blueprint for achieving operational integrity and reliability. Our commitment to quality is matched by our dedication to customer support, ensuring a project outcome that meets and surpasses expectations.

1.Investment Breakdown

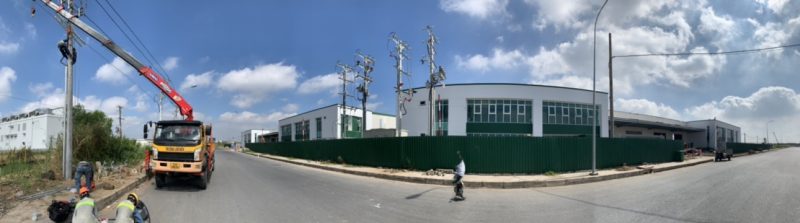

22KV Transmission Line:

The foundation of energy distribution includes poles, insulators, cables, and a full labor package.

14m High-Voltage Transmission Line Pole
Iron Crossarm L2200x75x75x8mm/Zn
Crossarm Brace 60x6x920
24Kv Standoff Insulator + Rod
24Kv Polymer Suspension Insulator
AXV 50mm2 Covered Cable: Phase Wire
Bare AC 25mm2 Cable: Ground Wire
CXV 25mm2 Covered Cable: Phase Wire
LBFCO 200A-24kV Polymer + Base
LA 18KV 10KA Polymer + Base
TU, TI
Medium Voltage TU, TI Support (H, V50 frame)
3P 4 Wire 120/60V – 5A Electronic Meter
Cu/XLPE/PVC 4Cx25mm2 Cable – 0.6/1kV
Composite Electric Meter Box Size H500 x W300 x D200
Grounding for Line Section
Pole Foundation
Line Section Testing
Line Section Accessories: Hotline Clamp 2/0 (50-70), Insulator Cap, Grip Clip, Cable Lug, Mid/Low Voltage Tape, Bolts, LA Cover, LBFCO…
Labor Cost Calculated as a Package

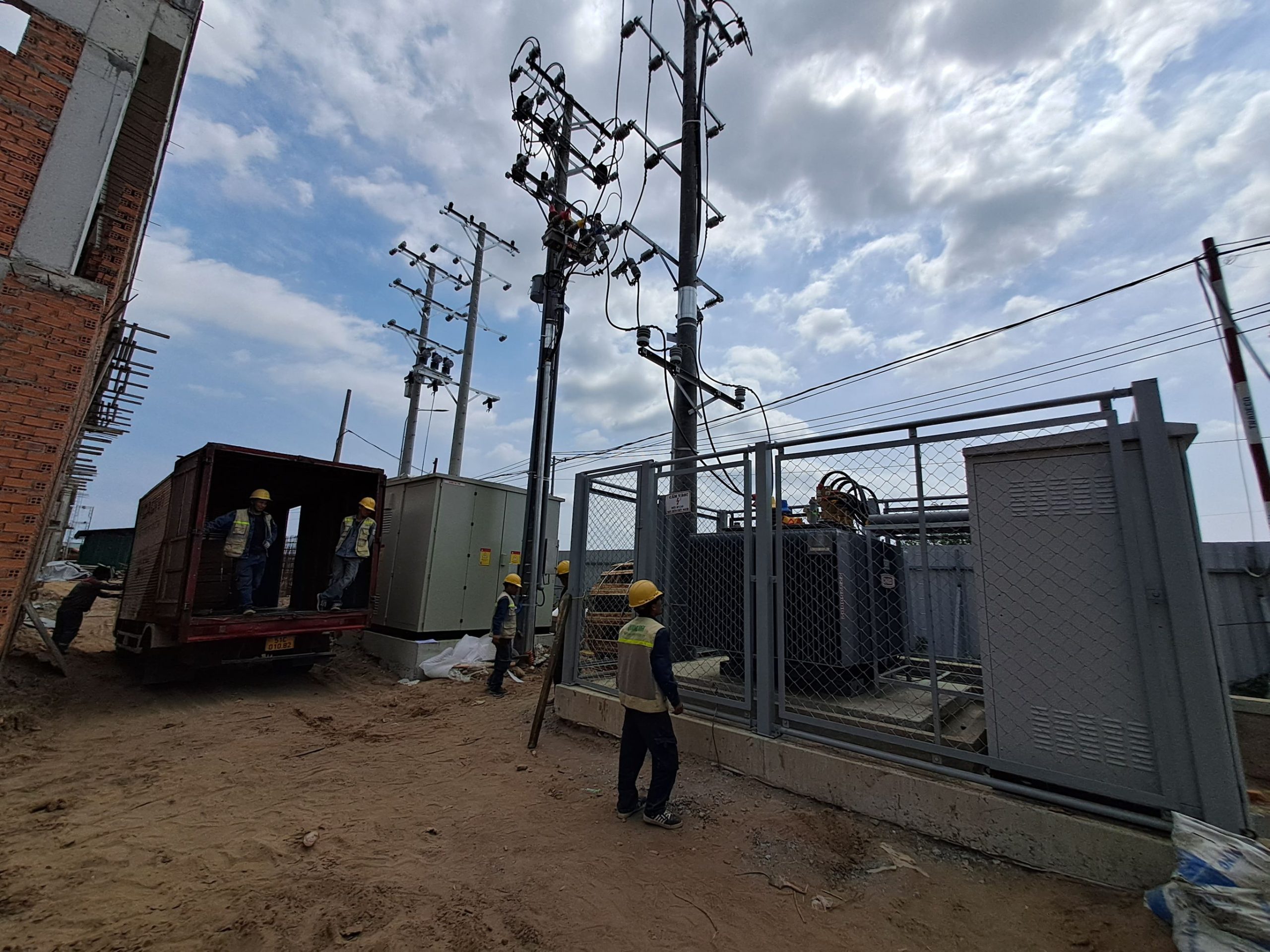

1500KVA Substation – Materials:

Poles, crossarms, insulators, cabling, and significant components for a fully functioning substation.

14m High-Voltage Transmission Line Pole
Composite Crossarm 2400x75x75x6mm + Brace: LBFCO
Iron Crossarm L2400x75x75x8mm/Zn + Brace
24kV Standoff Polymer Insulator DR600 + Non-Lead Covered Rod
Low Voltage Cable Support
Substation Platform and Fence
Substation Grounding
Line Accessories: Insulator Cap, Cable Lug, Mid/Low Voltage Tape, Bolts, LA Cover, LBFCO, LBFCO Nameplate, Pole Nameplate, Station Nameplate, No Climbing Sign…
Pole Foundation
24KV C/XLPE/PVC 25mm2 Covered Cable
CV/600V-300mm2 Cable from MBA – 4 Strands/Phase
CV/600V-300mm2 Cable from MBA – Neutral Wire 2 Strands/Ground
Cu300mm2 Cable Lug
3 PHASE MBA 1500KVA- 22/0.4KV
LBFCO 200A-24kV Polymer + Base
LA 18KV 10KA
MSB Cabinet (ACB + reactive power compensation) Double Doort
ACB 3P 2500A 85KA Fixed Type
Reactive power compensation 750Kvar
Equipment Testing
Labor Cost Calculated as a Package

Ancillary Costs:

Planning, supervision, connection, commissioning, and transport — the unseen yet critical elements.

Design and Assessment Costs
Supervision Costs
Power Cut Connection Fee
Commissioning Test Fee
Approval Documentation for Substation Installation, Completion
Construction Machinery & Material, Equipment Transport Cost

Financial Synopsis

The grand total for the establishment of the substation You can find all of the items mentioned above in our video.

Every investment point has been meticulously calculated to reflect the comprehensive services provided, ensuring complete transparency and integrity.

2.Contractor’s Comprehensive Role and Structured Project Phases

Within the project’s scope, the contractor is entrusted with overarching procedural management, while the investor’s contribution is limited to the provision of legal documents such as land usage rights, business registration, and ID verification, all of which must be notarized and valid within a three-month period. The contractor’s responsibilities encompass the entire project lifecycle according to the latest electrical equipment guidelines, from securing grid connections to performing acceptance inspections. The project is meticulously planned in two stages: an initial preparation phase lasting 45 days, followed by a construction stage of 15 days, cumulatively completing the project in 60 days.

3.Financing Structure for Building a Transformer Station

The construction of the transformer station is financially supported through a tripartite payment strategy. The process commences with an upfront payment immediately after contract ratification, empowering the contractor to mobilize resources and commence the site setup. The progression to the second payment is tied to the investor’s formal acknowledgment of receiving the transformer, paving the way for its installation and the preparatory steps towards the station’s operational readiness. The financial arrangement is wrapped up with a final payment, delivered post the successful energization and rigorous testing phase, a collaborative achievement of the investor and the contractor.

4. Customer Support and Operational Guarantee

A one-year warranty accompanies our projects, offering clients operational security and confidence after construction is finalized.

5. Pioneering in Customer Care and Operational Excellence

Our dedication to maintaining high standards of quality and offering transparent pricing, combined with our vast experience in developing transformer stations, secures customer contentment. We ensure continuous availability to cater to your inquiries and needs. For custom guidance and an exact quotation for an 1500kVA 22/0.4kV transformer station installation, please contact us through the provided channels. Our team of specialists is eager to assist in planning, evaluating costs, and managing legalities, promising a smooth pathway to project completion.

6. Inquire for Specialized Project Interaction

Partnering with QuangAnhcons for your 1500kVA – 22/0.4KV substation project represents a strategic move towards better energy solutions, enhanced system reliability, and broader economic benefits. Our approach, characterized by transparent pricing, unparalleled service, and advanced technical capability, guarantees that your collaboration with us will foster excellence in the electrical field.

Quang Anh CE Co.,LTD

Contact Number: (+84) 9 1975 8191

Email Address: project@quanganhcons.com

Office Location:Unit 02, 08th floor, Pearl Plaza Building, 561A Dien Bien Phu Street, Ward 25, Binh Thanh District, Ho Chi Minh City

Operational Hours: Monday to Friday, from 8:00 am to 5:00 pm.

Please Note: All provided figures are estimations and may vary based on site conditions and market variables. Our direct communication channels are open for real-time updates and custom solutions.
