Step-by-Step Costs for Constructing a 5000KVA Transformer Substation

Building a 5000KVA – 22/0.4KV transformer substation in Vietnam requires careful planning, deep expertise in electrical systems, and exacting standards in execution. This comprehensive article offers an in-depth look at the entire cost structure for setting up a 5000KVA substation, expertly managed by QuangAnhcons. We aim to provide prospective clients and partners with a complete insight into every facet of substation development, from financial estimates and essential documentation to project scheduling. Our objective is to ensure a smooth and efficient construction workflow that meets the highest standards of quality and compliance.

Detailed Cost Breakdown

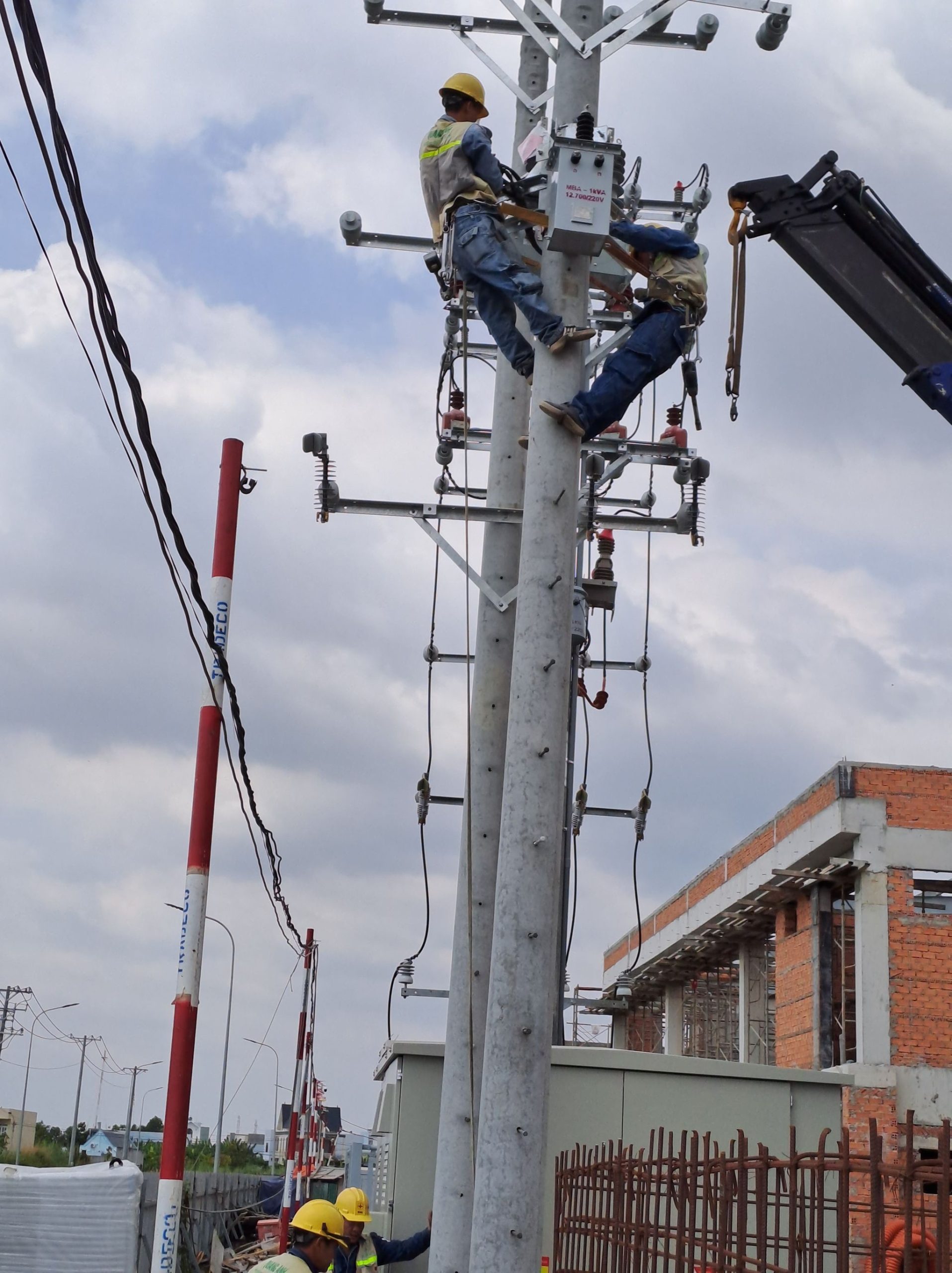

22KV Transmission Line (8.8% of total costs)

This segment includes high-voltage transmission poles, insulators, covered cables for both phase and ground wires, reclosers, and includes comprehensive labor costs. Key components like 24Kv Polymer Suspension Insulators and recloser units with control panels are integral for ensuring reliability and effective performance.

5000KVA Substation Materials (87.76% of total costs)

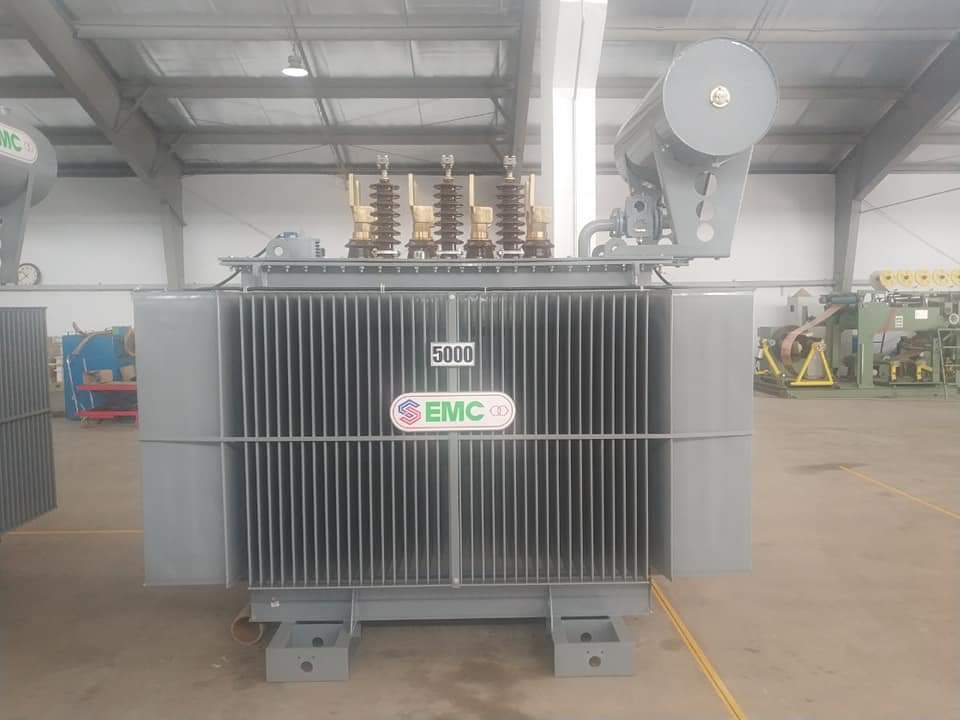

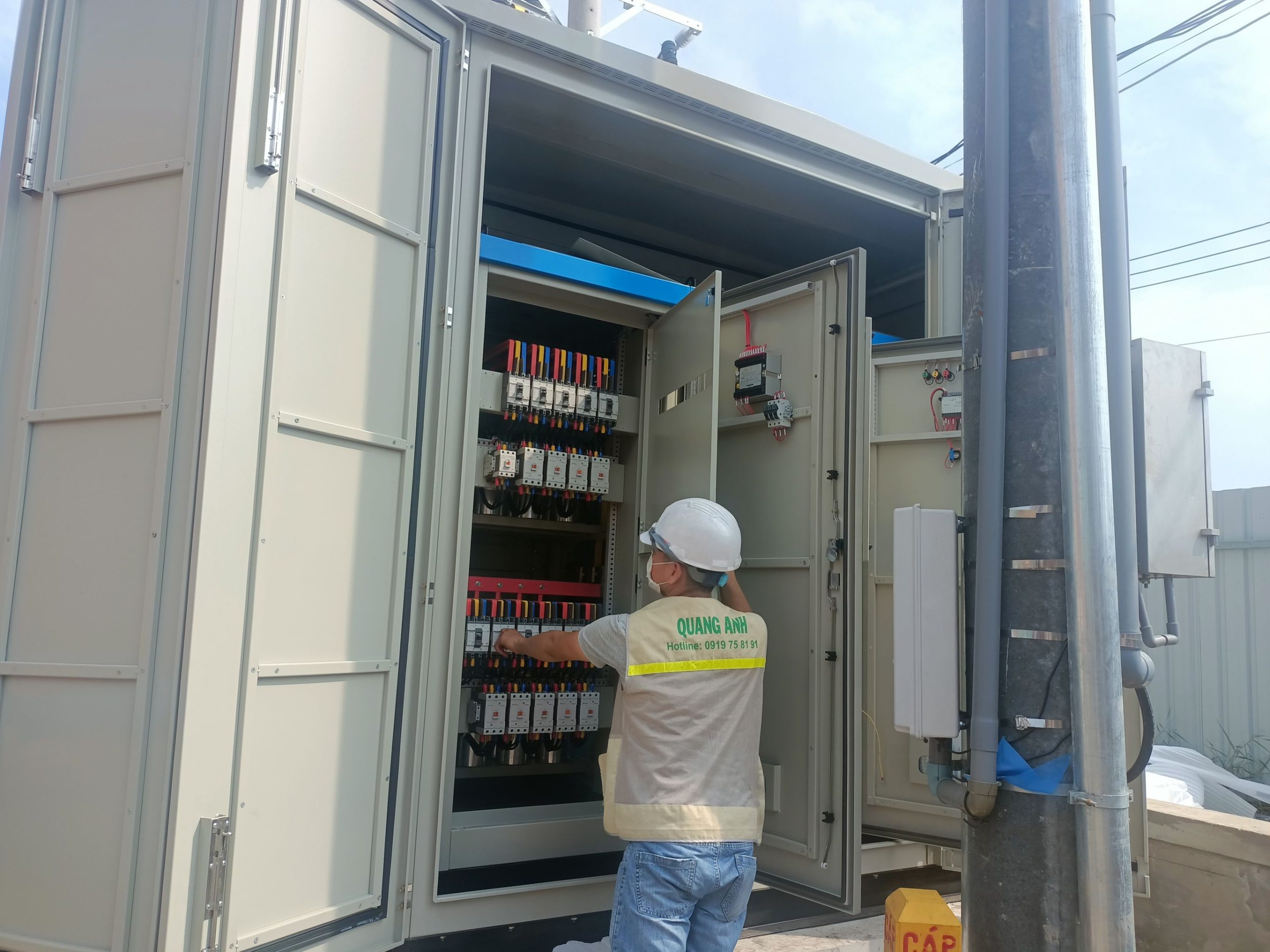

This category now includes additional or enhanced materials such as upgraded 5000KVA oil transformers, 7500A fixed type ACBs, and expanded reactive power compensation systems to accommodate increased operational demands. The comprehensive inclusion of high-voltage poles, diverse crossarms with braces, and detailed substation grounding

Other Costs (3.44% of total costs)

Expanded costs include heightened scope for design and assessment fees, increased supervision needs, elevated fees for connection cut-offs, advanced commissioning tests, and enhanced logistical support for the transportation of construction machinery and materials.

Customers can discover a comprehensive list of materials, equipment, and their corresponding technical specifications for each aspect of the substation construction cost, detailed in the article attached to this video.

Construction Workflow and Schedule for a 5000KVA Substation

Developing a 5000KVA substation is a complex operation that demands detailed planning and precise implementation. The construction sequence kicks off with comprehensive preparation of the site, continues with the setup of essential infrastructure components, and concludes with detailed examinations of all electrical systems. Establishing a clear construction schedule is crucial, providing all involved parties with a transparent timeline for the project’s completion. The overall project is designed to be completed within a defined, brief period, maximizing efficiency from inception to conclusion.

Efficient Project Management in Transformer Substation Development: Contractor’s Leadership and Investor’s Documentation Management

Successful management is essential in any transformer substation development. The role of the contractor is central, responsible for guiding the project and ensuring compliance with electrical standards while effectively collaborating with energy regulatory authorities. Conversely, the investor’s role is to facilitate by ensuring all legal documents are in order, such as up-to-date land ownership papers, necessary authorizations, and certified personal identifications, all duly notarized to ensure they remain current. The project unfolds through distinct stages, starting with extensive groundwork leading up to the actual build, organized into a meticulously planned 60-day period. This period is divided into 45 days for thorough preparatory measures and 15 days dedicated to intensive construction efforts.

Documentation and Compliance Standards

Before the commencement of any construction, QuangAnhcons ensures all necessary legal and regulatory documentation is thoroughly compiled and verified. This includes acquiring land use rights, securing business licenses, and confirming environmental compliance. These preparatory steps are vital to guaranteeing that the substation construction adheres strictly to local laws and progresses without any legal hindrances, ensuring timely project completion.

Warranty and Client Support

QuangAnhcons is dedicated to delivering not only a robust substation but also exceptional post-installation support and a comprehensive warranty. This ensures any issues encountered post-installation are resolved quickly, maintaining operational efficiency and achieving high levels of client satisfaction.

Strategic Financial Planning for Substation Projects

The financing of a substation project is strategically segmented into three pivotal stages. Initially, a down payment is made when the contract is signed, which facilitates the early procurement and transportation of essential materials and equipment. Subsequent payments are structured around key milestones, including the arrival and installation of the transformer and the start of preliminary operations. The financial plan concludes with a final installment after the substation becomes fully operational and all necessary validations with the investor have been completed. This phased payment structure helps streamline cash flow and ensures the project progresses on schedule.

Investing in Advanced Substation Solutions with QuangAnhcons

Opting for QuangAnhcons to manage your 5000KVA – 22/0.4kV substation project ensures a commitment to excellence and reliability. Our detailed attention to every stage of project planning and execution reflects our commitment to enhancing Vietnam’s infrastructure sustainably and efficiently.

Contact Us for Professional Consultation

To start your advanced substation project or for expert guidance, reach out to QuangAnhcons:

Hotline: (+84) 9 1975 8191

Please Note: All provided figures are estimations and may vary based on site conditions and market variables. Our direct communication channels are open for real-time updates and custom solutions.
