How much is the total cost for constructing a 630kVA transformer station in Vietnam?

In the context where energy plays a pivotal role in socio-economic development and the demand for an efficient electricity transmission system is on the rise, establishing and upgrading electrical infrastructure becomes imperative. The project for designing and constructing a 22KV transmission line, along with the installation of a 630kVA 22/0.4KV substation, stands as a clear testament to the robust investment in this sector, aimed at ensuring the stability and reliability of the power supply.

This project encompasses not only the meticulous selection of components and professional labor for the installation of the transmission line and substation but also emphasizes adherence to the latest industrial standards and close collaboration with relevant energy authorities. In the following article, we will delve into each segment of the project, detailing the components, construction process, payment plan, customer support measures, and compliance procedures, to provide a comprehensive overview of this endeavor.

I. Estimation of Supplies and Tools

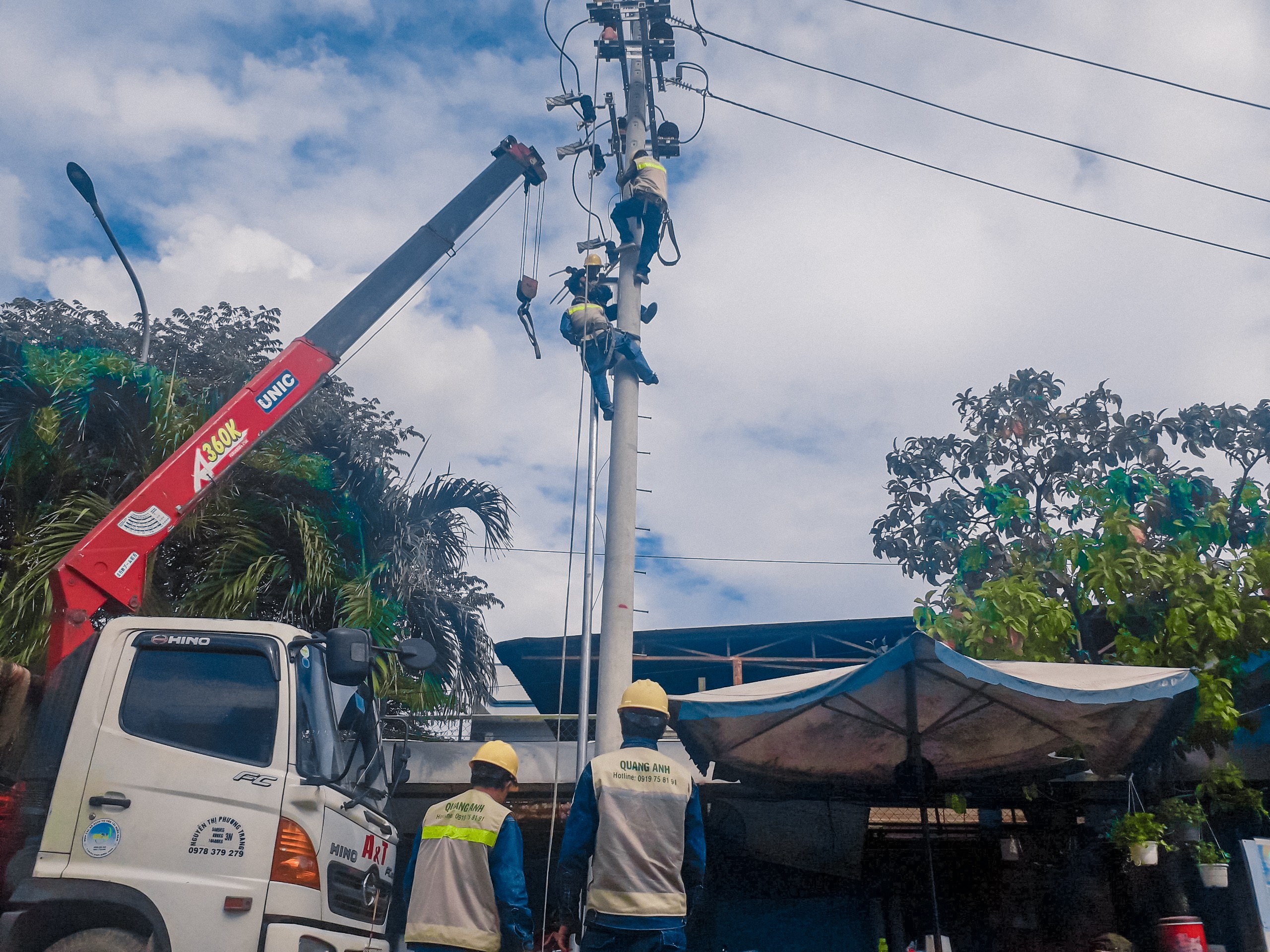

1. Components for 22KV Power Transmission Line:

This section presents an expertly selected list of components and skilled labor for the establishment of a 22KV power distribution line, a cornerstone in electricity dissemination:

– Poles made of centrifugally spun concrete, 14 meters tall

– Zinc-coated iron brace, dimensions L2400x75x75x8mm

– Zinc-coated bracing rod, 60x6x920mm

– Standoff Insulators for 24Kv applications

– Suspension Insulators made from polymer for 24Kv use

– Insulated cables for phase conducting, AXV 50mm2

– AC 50mm2 cables for neutral conducting without insulation

– CXV 25mm2 cables, insulated for phase transmission

– Fuse cutout units, FCO 200A-24kV, with a polymer and bass construction

– Conductive lead wiring, 20K gauge

– Caps for fuse cutouts, both top and bottom

– Composite brace and bracing rod, measuring 2.4 meters

– Electronic meters, 3 phase, 4 wire, 120/60V, 5A

– Cables, Cu/XLPE/PVC, 4 cores, 25mm2, rated for 0.6/1kV

– Meter cabinets made from a composite material, sized H500 x W300 x D200

– Grounding systems for the transmission line

– Foundations for the poles

– Testing services for the transmission line

– Additional accessories for the transmission line

– Comprehensive labor services for installation

– Reinforcement in concrete poles and durability-focused iron braces ensure the transmission line’s robustness.

– Insulation and protection components, such as high-voltage insulators and fuse cutouts, maintain operational efficiency.

– Various insulated cables play crucial roles in electricity conveyance within the network.

– Grounding solutions, structural foundations, and meticulous testing underscore the system’s safety and efficacy.

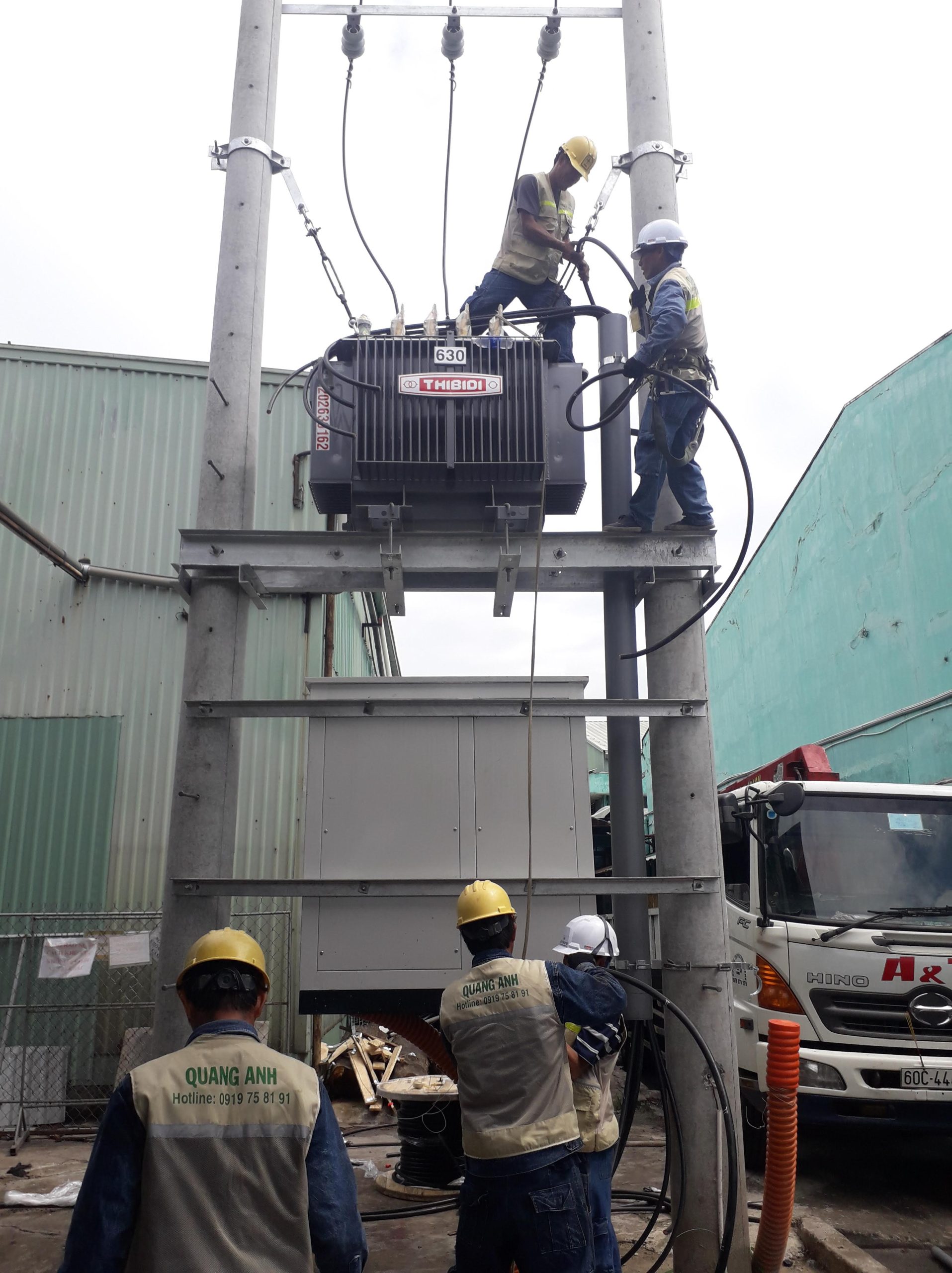

2. 630kVA Substation Assembly for 22/0.4KV:

The assembly of a 630kVA substation incorporates a precise selection of components and expert labor, crucial for operational efficiency:

– Concrete poles, 14 meters, spun centrifugally

– Iron braces, V75x75x8x2.6m, with varying applications

– U-shaped braces in various sizes for structural support

– Polymer insulators for 24kV, equipped with support rods

– Transformer station necessities, including pole foundations and high-voltage cables

– A three-phase, 630kVA oil transformer for voltage transformation

– Protective equipment, such as fuse cutouts and lightning arresters, for safety

– An advanced switchboard cabinet featuring MCCB 1000A and compensation panels

– PVC pipes and fittings for cable management

– Comprehensive testing to ensure the substation’s performance

– All-inclusive labor services for meticulous assembly.

3. Ancillary Costs:

These expenditures cover all additional aspects essential from the project’s commencement to its completion:

– Design, evaluation, and project management fees

– Charges for safe electrical disconnections, testing, commissioning, and logistics

4. Total costs:

In total costs, you can find all of the items mentioned above in our video.

II.Construction Procedure for the 630kVA Transformer Station:

This encompasses the comprehensive process from securing technical approvals to the construction and commissioning of the station, adhering to top industry standards and coordinating with energy authorities. The construction is anticipated to take 45 days, with detailed planning of all essential steps and milestones.

III.Payment Plan:

Reflective of the construction timeline, the payment structure is divided into three phases:

– An upfront payment of 50% at the contract agreement.

– A subsequent 40% once the transformer is installed.

– The final 10% following successful energization and testing.

IV. Warranty and Customer Support:

A year-long warranty is provided alongside a robust customer support system, ensuring reliable and efficient energy solutions.

V. Legal and Regulatory Compliance:

For the successful construction of a transformer station in Vietnam, adherence to specific regulatory frameworks and procedural steps is crucial. Below is an outlined guide highlighting the essential documentation and preparatory measures necessary:

Legal Documentation and Initial Preparations: Initially, it’s required to compile and notarize essential legal documents, including the land use right certificate or a land lease agreement, the business license, and the legal representative’s ID card or passport. Additionally, an environmental protection pledge may be needed, with all documents notarized and no older than three months.

Application for Electricity Purchase: The foundational step towards establishing a transformer station involves submitting an application for electricity purchase. This can be directed to the local Electricity Company or the Vietnam Electricity Group’s Business Department.

Identifying the Site and Purpose for Electricity Usage: It is essential to furnish a copy of documents validating the location for electricity purchase – this could range from a permanent residence book to a house ownership certificate, among others. Furthermore, the legal representative’s ID or passport, alongside documentation like a business registration certificate or investment license, delineates the intended use of electricity at the proposed site for the transformer station.

Connection Application as per Industry and Trade Ministry Guidelines: This step encompasses submitting a connection application, complete with schematic layouts of primary equipment post-connection point and corresponding technical documentation.

Survey and Agreement on Connection: Following application submission, the Electricity Company undertakes a survey and dialogues on the technical specifications and connection point location.

Investment Contract and Legal Formalities: This encompasses agreements aligning with the Electric Power Development Planning, securing construction permits, and devising environmental protection strategies.

Construction and Station Building: This phase includes clearing the land, applying for excavation permits (if required), procuring necessary materials and equipment, and orchestrating the construction activities.

Commissioning and Energization: With construction completion, the formation of a commissioning board is vital to oversee acceptance tests and facilitate energization, coordinated with the Electricity Company.

This structured approach ensures compliance with legal and procedural requirements, laying a solid foundation for the construction of a 630kVA transformer station in Vietnam, guaranteeing operational success and regulatory conformity.

VI. Customer Engagement and Service Excellence:

Our commitment to quality and transparent pricing, coupled with our experience in transformer station development, ensures customer satisfaction. We offer 24/7 support for any inquiries or assistance needed.

For tailored guidance and a precise quotation that meets your specific needs for a complete 630kVA 22/0.4kV transformer station setup, please connect with us using the contact details we’ve provided. Our team of experts is ready to facilitate the planning, cost assessment, and legal procedures to guarantee a smooth construction trajectory.

Contact for a Tailored Experience

Quang Anh CE Co.,LTD

– Contact Number: (+84) 9 1975 8191

– Email Address: project@quanganhcons.com

– Office Location:Unit 02, 08th floor, Pearl Plaza Building, 561A Dien Bien Phu Street, Ward 25, Binh Thanh District, Ho Chi Minh City

– Operational Hours: Monday to Friday, from 8:00 am to 5:00 pm.



Please Note: All provided figures are estimations and may vary based on site conditions and market variables. Our direct communication channels are open for real-time updates and custom solutions.
